Sugar Mill Stainless Steel Welding Pipe 42.4mm ASME Tp304 Specification 12M

Brand Name:	KORER
Model Number:	OD: 6mm – 114.3mm, WT:0.3mm –4.5mm
MOQ:	1 Metric Tons Per Size
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10000 Metric Tons Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001,PED and Manufacture License Of Pressure Tube

Item:

Stainless Steel Welding Pipe

Outside Diameter:

6mm-114.3mm

Wall Thickness:

0.3mm To 4.5mm

Length:

Max 20000mm

Standard:

SA249

Grade:

304 304L 316L 317L 904L

Welding Method:

TIG Or Laser Welding

Packaging Details:

Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle

Supply Ability:

10000 Metric Tons Per Year

Highlight:

Sugar Mill Stainless Steel Welding Pipe

Stainless Steel Welding Pipe 42.4mm

astm a249 tp304 specification 12M

Product Description

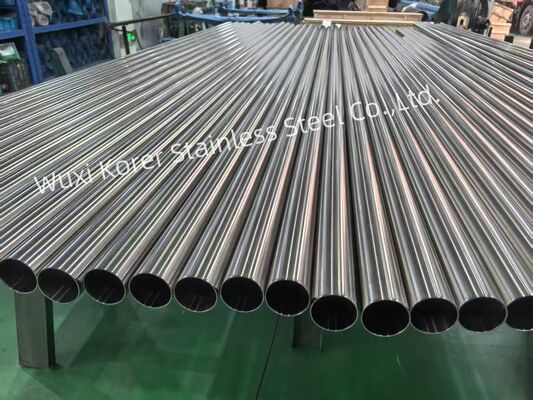

TP304 Stainless Steel Welding Pipe OD 42.4mm ASME SA249 for Sugar Mill

The TP304 Stainless Steel Welding Pipe, produced according to ASME SA249 / ASTM A249, is a premium-quality austenitic welded pipe specially designed for sugar mill and food processing applications. With an outer diameter of 42.4 mm, this pipe provides excellent corrosion resistance, mechanical strength, and surface cleanliness, making it ideal for industries requiring hygienic and durable piping systems. Manufactured by Wuxi Korer Stainless Steel Co., Ltd., it undergoes bright annealing and precision TIG welding to ensure a smooth inner surface and uniform weld quality. TP304 stainless steel offers superior resistance to organic acids and sugar-based corrosion, ensuring long service life and consistent performance in demanding processing environments.

Applications

Sugar mill processing lines for juice extraction, evaporation, and crystallization systems
Food and beverage industries for hygienic product transfer
Pharmaceutical and dairy plants for clean and corrosion-resistant piping
Heat exchangers, condensers, and evaporators in food processing plants
General industrial applications requiring durability and ease of maintenance

Advantages

Excellent corrosion resistance against organic acids and moisture found in sugar processing
Smooth inner surface enhances fluid flow and prevents sugar or residue buildup
Bright annealed finish ensures easy cleaning and hygiene compliance
High mechanical strength and pressure resistance for reliable operation
Conforms to ASME SA249 / ASTM A249 standards, ensuring global compatibility
Superior weld integrity achieved through advanced TIG welding technology

Material Composition (TP304 Stainless Steel)

Element	Content (%)
Chromium (Cr)	18.0 - 20.0
Nickel (Ni)	8.0 - 12.0
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.0
Silicon (Si)	≤ 1.0
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.03

Technical Specifications

Parameter	Value
Standard	ASME SA249 / ASTM A249
Material Grade	TP304
Outer Diameter	42.4 mm
Wall Thickness	Customized / per order
Length	Up to 12 meters
Surface Finish	Bright Annealed / Polished / Pickled
Type	Longitudinally Welded Stainless Steel Pipe
Certification	ISO 9001:2008, Pressure Tube Manufacture License

Manufacturing Process

Raw Material Inspection → Slitting → Tube Forming → TIG Welding → Bright Annealing → Straightening → Pickling or Polishing → Nondestructive Testing (Eddy Current / Ultrasonic) → Dimensional Inspection → Marking and Packaging

FAQ

Why is TP304 stainless steel suitable for sugar mill applications?

TP304 offers superior corrosion resistance to sugar acids and moisture, ensuring durability and hygiene in food environments.

What is the surface finish option?

Bright annealed and polished finishes are available for high cleanliness and smoothness.

Can the tube be customized?

Yes, outer diameter, wall thickness, and surface finish can be customized according to project requirements.

TP304 stainless steel pipe, ASME SA249 welded stainless steel tube, 42.4mm stainless steel pipe, sugar mill stainless steel tube, ASTM A249 304 pipe, food-grade stainless steel tubing, welded stainless steel pipe manufacturer, corrosion-resistant pipe for sugar industry, hygienic stainless steel tube, stainless steel welding pipe China.
