14BWG 1 1 2 Stainless Steel Pipe 14BWG ASME SA249 Chemical Equipment

Brand Name:	KORER
Model Number:	OD: 6mm – 114.3mm, WT:0.3mm –4.5mm
MOQ:	1 Metric Tons Per Size
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10000 Metric Tons Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001,PED and Manufacture License Of Pressure Tube

Item:

Stainless Steel Welding Pipe

Outside Diameter:

6mm-114.3mm

Wall Thickness:

0.3mm To 4.5mm

Length:

Max 20000mm

Standard:

SA249

Grade:

304 304L 316L 317L 904L

Welding Method:

TIG Or Laser Welding

Packaging Details:

Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle

Supply Ability:

10000 Metric Tons Per Year

Highlight:

1 1 2 stainless steel pipe 14BWG

1 1 2 stainless steel pipe ASME

Chemical Equipment polished stainless steel

Product Description

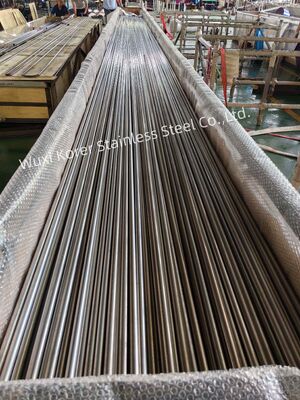

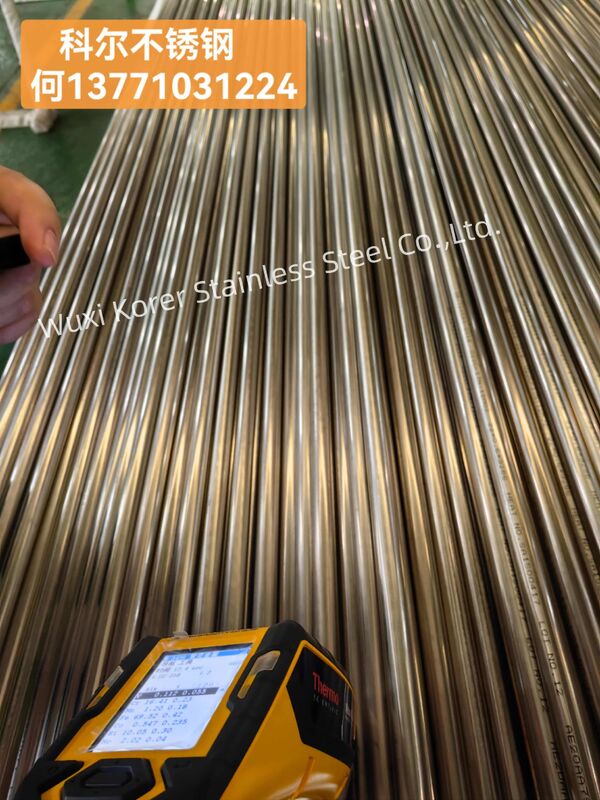

TP304 Stainless Steel Welding Pipe OD 1 1/2" x 14BWG ASME SA249 for Chemical Equipment

The TP304 Stainless Steel Welding Pipe, manufactured according to ASME SA249 / ASTM A249, is a high-performance austenitic welded stainless steel pipe designed specifically for chemical equipment, process piping, and heat transfer systems. With an outer diameter of 1 1/2" (38.1 mm) and a wall thickness of 14 BWG (2.11 mm), this pipe ensures exceptional corrosion resistance, durability, and structural stability.

Applications

Chemical equipment such as reactors, heat exchangers, and evaporators
Petrochemical pipelines for acids, solvents, and alkali transportation
Pharmaceutical and food processing plants requiring sanitary, corrosion-resistant tubing
Power generation systems for condensers and boiler piping
Industrial fluid transfer and cooling systems

Advantages

Excellent corrosion resistance against acids, alkalis, and chemical media
High-temperature strength, maintaining integrity in chemical processing environments
Smooth internal surface ensures optimal fluid flow and prevents contamination buildup
Superior weldability for reliable fabrication and installation
Compliance with ASME SA249 / ASTM A249 standards, ensuring quality and consistency
Bright annealed surface enhances cleanliness and appearance

Material Composition (TP304 Stainless Steel)

Element	Content (%)
Chromium (Cr)	18.0 - 20.0
Nickel (Ni)	8.0 - 12.0
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.0
Silicon (Si)	≤ 1.0
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.03

Technical Specifications

Parameter	Value
Standard	ASME SA249 / ASTM A249
Material Grade	TP304
Outer Diameter	1 1/2" (38.1 mm)
Wall Thickness	14 BWG (≈ 2.11 mm)
Surface Finish	Bright Annealed / Pickled
Length	Up to 12 meters
Type	Longitudinally Welded Stainless Steel Pipe
Certification	ISO 9001:2008, Pressure Tube Manufacture License

Manufacturing Process

Raw Material Inspection → Slitting → Tube Forming → TIG/Plasma Welding → Bright Annealing → Straightening → Pickling/Polishing → Non-Destructive Testing (Eddy Current/Ultrasonic) → Dimensional Inspection → Marking → Packaging

FAQ

Why choose TP304 stainless steel for chemical equipment?

TP304 provides excellent resistance to oxidation and corrosion in various chemical environments, ensuring long service life.

What testing methods are used for quality assurance?

Each pipe undergoes Eddy Current, Ultrasonic, and Hydrostatic Tests to ensure mechanical strength and integrity.

Can TP304 pipes handle high-temperature chemical processes?

Yes, they maintain performance at elevated temperatures up to 870°C under continuous service.

Core Keywords: TP304 stainless steel welding pipe, ASME SA249 stainless steel tube, 1 1/2 inch welded stainless steel pipe, 14BWG stainless steel pipe, chemical equipment stainless steel tubing, ASTM A249 TP304 pipe, industrial welded stainless steel tube, corrosion-resistant stainless steel pipe, heat exchanger pipe, stainless steel pipe manufacturer China.
