| Brand Name: | KORER |
| Model Number: | OD: 5mm – 114.3mm, WT:0.3mm – 3.5mm |
| MOQ: | 1 Metric Tons Per Size |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10000 Metric Tons Per Year |

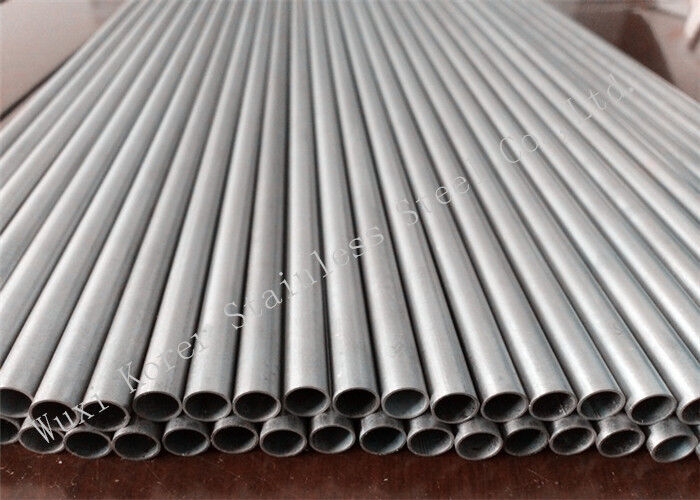

The ASME SA249 stainless steel welded pipe is a premium-grade product designed for petrochemical applications. With an outer diameter of Ф19.05mm and wall thickness ranging from 0.5mm to 3.5mm, this pipe meets rigorous ASTM SA249 standards, making it ideal for heat exchanger systems and fluid transfer pipelines in demanding industrial environments.
| Standard | ASME SA249 |
|---|---|
| Outer Diameter | Ф19.05mm |
| Wall Thickness | 0.5mm - 3.5mm |
| Length | Customizable (typically up to 20 meters) |
| Material Grade | Austenitic Stainless Steel (304, 304L, 316, 316L, 904L, 2205, 2507 or other grades available) |
| Shape | Round (custom shapes available) |
| Finish | Mill finish, polished or passivated |
| Certifications | ISO 9001, PED, and other relevant certifications |
Primarily petrochemical, power generation, food processing, and pharmaceutical industries.
Standard maximum is 20 meters, with custom lengths available.
Yes, designed specifically for heat exchanger and high-heat environments.
Yes, we can produce custom diameters, wall thicknesses, and lengths.
