| Brand Name: | KORER |
| Model Number: | 304, 304L, 316, 316L,317L ,2205,2507 |
| MOQ: | 1 Metric Ton / Per Size |
| Price: | Negotiation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000 Metric Tons Per Year |

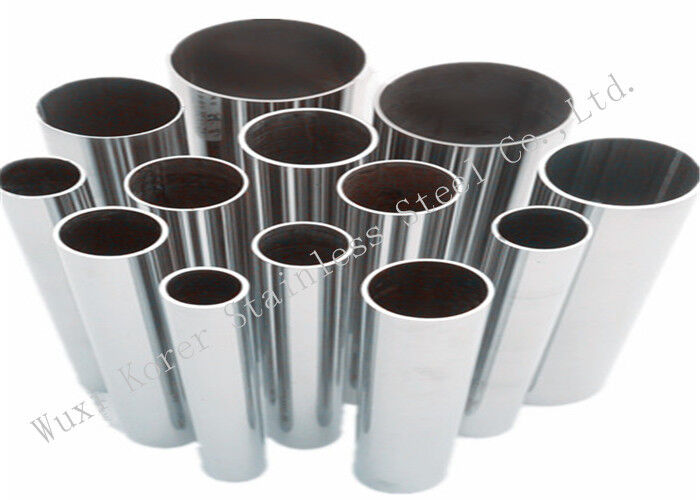

The Welded 304/L Stainless Steel Tube, manufactured according to ASTM A249 / ASME SA249, is a high-performance austenitic stainless steel pipe designed for heat exchangers, condensers, and evaporators. Produced by Wuxi Korer Stainless Steel Co., Ltd., this tubing features a bright annealed surface, precise dimensional control, and excellent corrosion resistance. The low-carbon version, 304L, minimizes intergranular corrosion after welding and offers superior durability in high-temperature and corrosive environments. These tubes are widely used in power generation, petrochemical, food, and pharmaceutical industries.
| Element | 304 (%) | 304L (%) |
|---|---|---|
| Chromium (Cr) | 18.0-20.0 | 18.0-20.0 |
| Nickel (Ni) | 8.0-11.0 | 8.0-12.0 |
| Carbon (C) | ≤0.08 | ≤0.03 |
| Manganese (Mn) | ≤2.0 | ≤2.0 |
| Silicon (Si) | ≤1.0 | ≤1.0 |
| Phosphorus (P) | ≤0.045 | ≤0.045 |
| Sulfur (S) | ≤0.03 | ≤0.03 |
| Parameter | Value |
|---|---|
| Standard | ASTM A249 / ASME SA249 |
| Grade | 304 / 304L |
| Manufacturing Type | Longitudinally Welded |
| Outer Diameter | 6 - 219 mm |
| Wall Thickness | 0.5 - 6.0 mm |
| Length | Up to 12 meters |
| Surface Finish | Bright Annealed / Polished / Pickled |
| Application | Heat Exchanger, Condenser, Boiler Tube |
Raw Material Inspection → Slitting → Tube Forming → TIG/Plasma Welding → Heat Treatment (Bright Annealing) → Straightening → Pickling or Polishing → Non-Destructive Testing (Eddy Current / Ultrasonic) → Dimensional Inspection → Marking → Packaging.
